Movement
Calibre 23ZD
← Back to all Calibres1954 – 1958
Lignes
10.5
Mounting Diameter
23.3
Thickness
4.45
Frequency (vph)
18,000
Jewels
17
Power Reserve
44
Hand Sizes
1.34, 0.76, 0.20
Complication
Date
Power
Manual
Shape
Round
Size
Medium
⤢ enlarge

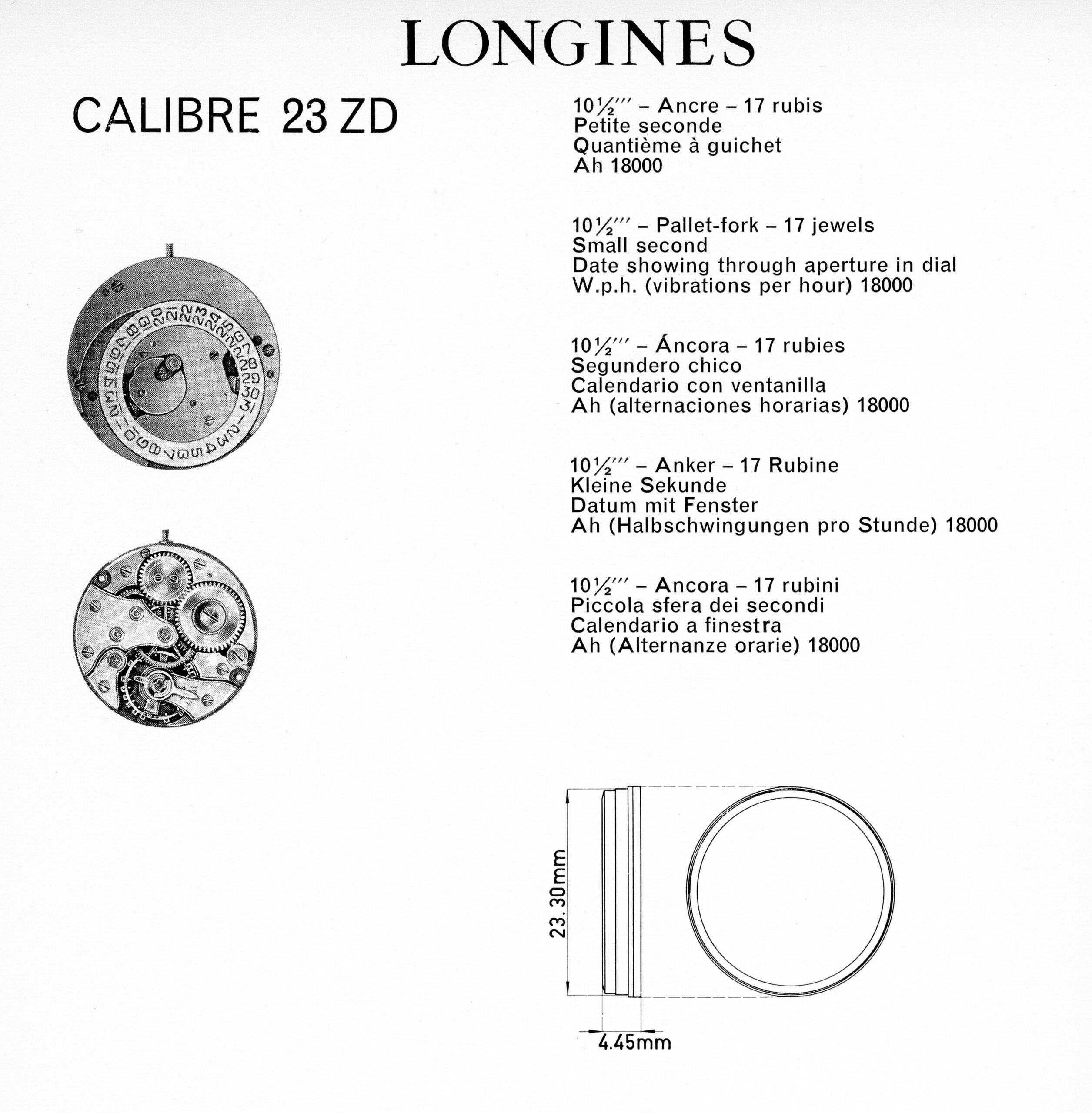

Technical Diagram
Notes
Developed 7 years after the 23Z and around the same time as Longines other calendar calibre, the 19AD, the 23ZD applied similar strategies to achieve a date complication. and this calibre would be the primary manual winding date calibre until the late 1950s.
23Z: sub second
23ZD: sub second, date
23ZS, 23ZN: sweep second
23ZSD: sweep second, date
