Movement
Calibre 19A
← Back to all Calibres1952 – 1960
Lignes
11.25
Mounting Diameter
25.3
Thickness
5.05
Frequency (vph)
18,000
Jewels
17
Power Reserve
38
Hand Sizes
1.35, 0.76, 0.19
Complication
Subsidiary Seconds
Power
Automatic
Shape
Round
Size
Medium
⤢ enlarge

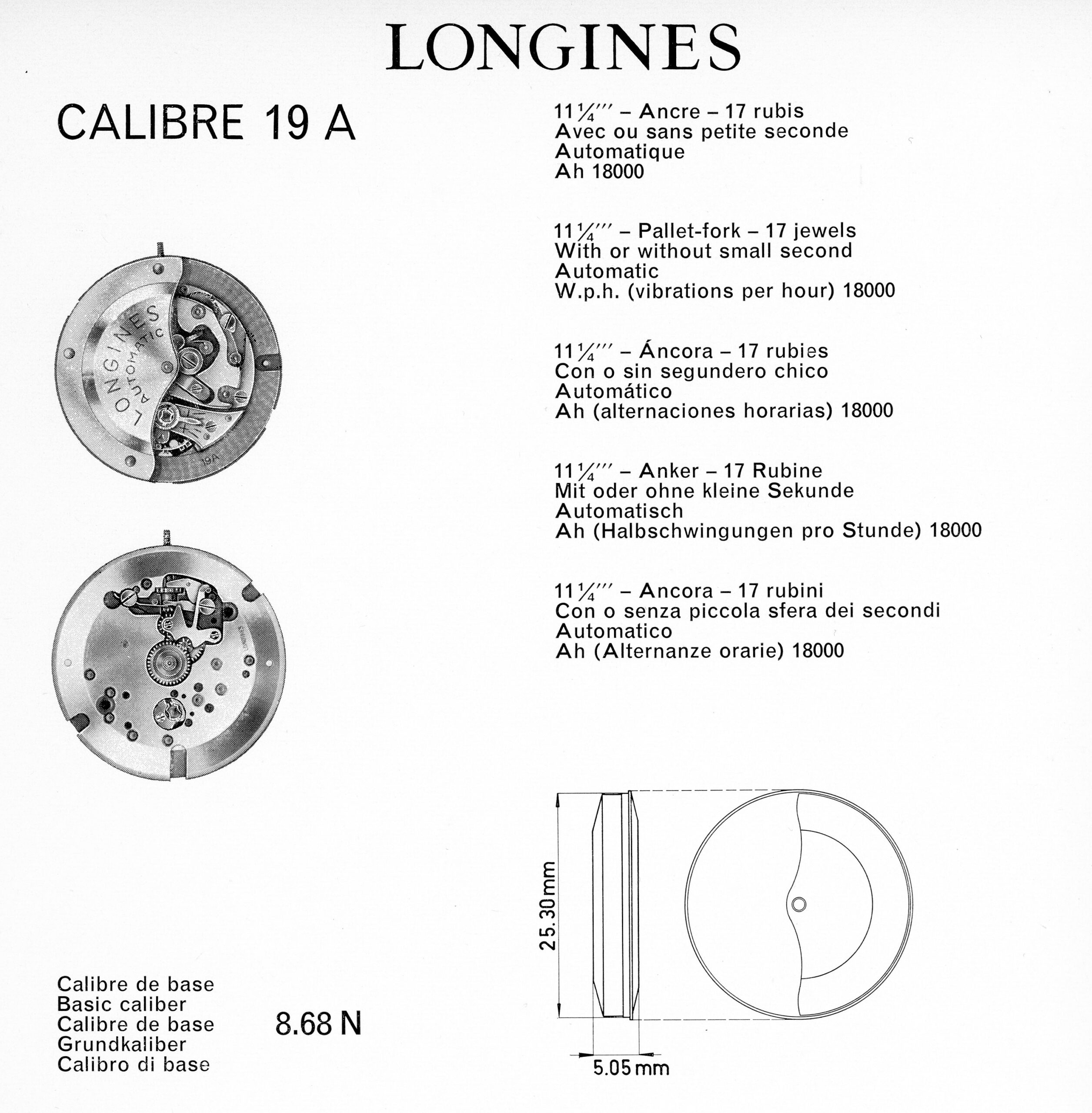

Technical Diagram
Notes
The 19A was an attempt to make a smaller and thinner automatic movement than the 22A learning from and simplifying the automatic winding mechanism of that movement and applying them to the new design. The 19A was designed based on the at the time retired 8.68N and was significantly overhauled and modernized during the design phase of the 19A.
